BWT Perla Seta is a premium duplex water softener designed for large homes where several bathrooms, rain showers, bathtubs and other water outlets may be used at the same time.
Designed to handle periods of high simultaneous water demand without turning the water softener into a hydraulic bottleneck.
Two ion-exchange columns allow the system to adapt its operation to changing household water demand.
High rated flow makes the system suitable for villas and larger properties with multiple simultaneous points of use.
In a large property, the challenge is not only total daily water consumption. Peak demand matters just as much. Perla Seta uses two ion-exchange columns to provide greater flexibility when multiple bathrooms and fixtures are used simultaneously.
A conventional softener relies on one ion-exchange bed. Its available flow and treatment capacity therefore depend entirely on a single column.
Perla Seta intelligently adapts column operation to actual water demand. When higher flow is required, the duplex architecture provides additional treatment capacity.
Perla Seta is not simply a larger water softener. Its duplex architecture, consumption-dependent control and proportional regeneration are designed to provide more available softened water while using regeneration resources only when they are actually needed.
Water normally flows through both ion-exchange columns in parallel. The control system adapts operation to actual consumption, maximising softened-water availability during periods of changing demand.
When one column is being regenerated, the second column remains available to soften the household water supply.
Regeneration is triggered according to actual treated-water volume rather than simply regenerating on a fixed schedule. Remaining softening capacity can therefore be used more efficiently.
The control system can adapt regeneration according to the remaining capacity of the resin instead of automatically using the same full regeneration cycle every time.
A precision brine meter controls the amount of brine required for regeneration. The regeneration process is adapted so that salt and rinse-water consumption are reduced to the required minimum.
The system prepares only the amount of brine required for the upcoming regeneration rather than maintaining an unnecessarily large permanent volume of prepared brine.
Adaptive parallel operation helps reduce unnecessary stagnation inside the ion-exchange columns during normal system operation.
The control system can initiate regeneration or hygiene-related cycles when required to maintain appropriate operating conditions.
Perla Seta uses ion exchange to reduce calcium and magnesium responsible for water hardness, helping protect the property from scale while changing how water behaves throughout the home.
Reduced hardness helps limit limescale deposits on shower glass, taps, tiles, mixers and premium bathroom fittings.
Softened water changes how soap and shampoo behave and reduces the mineral residue associated with hard water during showering.
Reducing calcium and magnesium helps limit scale accumulation inside water heaters, washing machines, dishwashers and other water-using equipment.
Less mineral scale means fewer white deposits on glass, taps, sinks and other wet surfaces throughout the property.
The system exchanges calcium and magnesium ions responsible for hardness with sodium ions, substantially reducing the tendency of water to form limescale.
Perla Seta combines high-capacity water softening with integrated protection designed to help identify abnormal water use and reduce the risk of water damage.
Automatically shuts off the household water supply when a configured leak condition is detected.
Monitors unusual continuous low-flow conditions that may indicate an unnoticed leak or abnormal consumption.
External moisture sensors can be positioned in vulnerable areas of the property to provide additional leak detection.

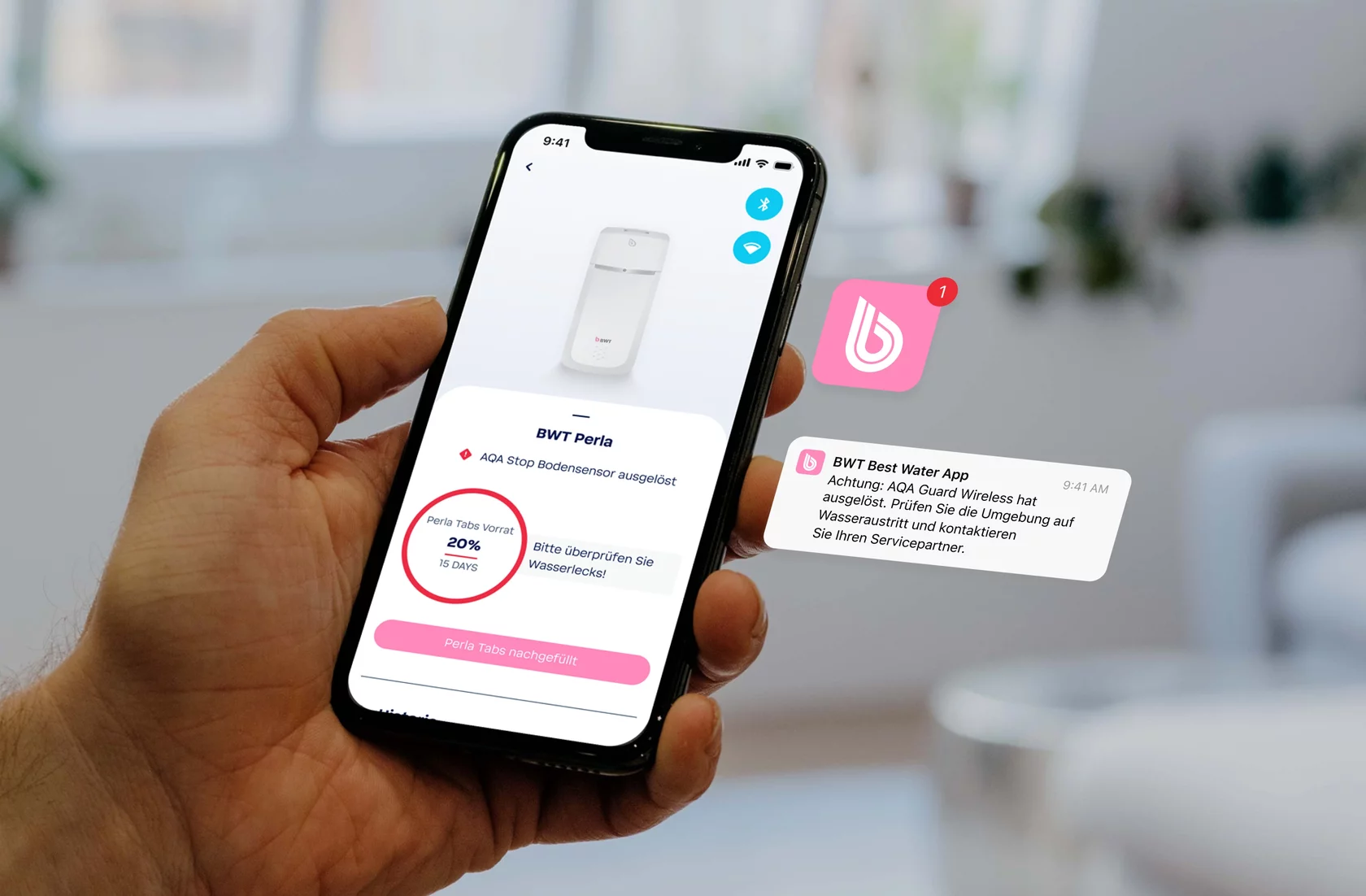

Perla Seta is designed for integration with the BWT connected ecosystem, combining local touchscreen operation with supported remote monitoring and management functions.
BWT Perla Seta combines water softening with connected monitoring. WLAN, LAN and GSM connectivity allow the system to communicate with the BWT digital ecosystem and provide operating information, warnings and supported remote functions.
An integrated ultrasonic sensor monitors the regenerating salt level inside the container, helping indicate when additional salt may be required.
System warnings and fault information can be surfaced through the connected BWT environment to help identify situations requiring attention.
Connected AQA Guard sensors can detect moisture and work with the system's water shut-off functionality to provide additional protection against water damage.
Supported remote functions allow registered users to check relevant system information without being physically next to the water softener.
Operating and water-consumption information can help homeowners understand system use and identify changes in household water demand.
The BWT digital ecosystem provides supported product-status, service and holiday-related functions for easier ongoing management of the installation.
Connected functions depend on network availability, system registration, configuration and supported BWT services. App information should not be interpreted as continuous real-time telemetry for every system parameter.
Key technical characteristics of the BWT Perla Seta duplex residential water softening system.
| System type | Duplex water softener |
| Softening technology | Ion exchange |
| Ion-exchange columns | 2 |
| Rated flow at Δp 1 bar | 3.0 m³/h |
| Peak softened-water output | Up to 50 L/min |
| Nominal capacity | 2 × 18 m³ × °dH |
| Operating pressure | 1.5–8 bar |
| Water temperature | 5–30°C |
| Ambient temperature | 5–40°C |
| Electrical connection | 230 V / 50 Hz |
| Power consumption | 4 W |
| Display | 5" Multi Info Touch |
| Connectivity | WLAN / LAN / GSM |
| Leak shut-off | AQA Stop |
| Continuous-flow monitoring | AQA Watch |
| External leak sensors | AQA Guard compatible |
| Maximum AQA Guard sensors | Up to 10 |
| Installation type | Floor-standing |
| Required upstream filtration | Domestic particle filter |
BWT specifies installation of Perla Seta downstream of a suitable domestic particle filter. The softener is designed primarily to remove hardness and should not be used as a replacement for sediment, chlorine or microbiological treatment.
* Final system sizing should be based on actual water hardness, peak flow demand, number of bathrooms, household size and available inlet pressure.
Key questions about BWT Perla Seta, duplex water softening and high-flow residential installations.
A duplex water softener uses two ion-exchange columns instead of one. This provides greater flexibility in handling changing water demand and allows the system to support higher flow rates than many conventional single-column residential softeners.
The two-column architecture allows Perla Seta to adapt to household water demand, provide high peak flow and maintain softened-water availability while one column is regenerating.
Perla Seta uses consumption-dependent and proportional regeneration together with controlled brine dosing. This allows regeneration salt and rinse-water use to be adapted to actual operating requirements rather than using an unnecessarily fixed amount for every cycle.
Yes. When one ion-exchange column is being regenerated, the second column remains available for water softening.
Yes. The system is particularly relevant for larger homes with multiple bathrooms, rain showers, bathtubs and other fixtures that may operate simultaneously. Correct sizing should still be confirmed against actual peak flow and water hardness.
BWT specifies a rated flow of 3.0 m³/h at a pressure loss of 1 bar and a peak softened-water output of up to 50 litres per minute. These are different operating figures and should not be interpreted as the same performance rating.
Every water-treatment system creates some hydraulic resistance. The system should therefore be sized according to the property's actual peak flow and available inlet pressure.
Perla Seta integrates BWT water-safety functions including AQA Stop, AQA Watch and compatibility with AQA Guard moisture sensors.
The system includes WLAN, LAN and GSM connectivity and supports integration with the BWT digital ecosystem. Available remote monitoring and management functions depend on system setup, registration and network availability.
Perla Seta uses an integrated ultrasonic system for monitoring the level of regenerating salt, helping indicate when additional salt may be required.
Yes. BWT specifies installation downstream of a suitable domestic particle filter to protect the water softener and support reliable operation.
No. Its primary function is hardness reduction through ion exchange. Chlorine, sediment and microbiological treatment require appropriate additional filtration or disinfection stages where needed.
Correct sizing depends on local water hardness, peak simultaneous flow, number of bathrooms, household size, actual water consumption and available inlet pressure. A professional site assessment and water analysis should therefore be completed before installation.
